This class is derived from the SAX class DefaultHandler base class. More...

#include <rtSaxCppParser.h>

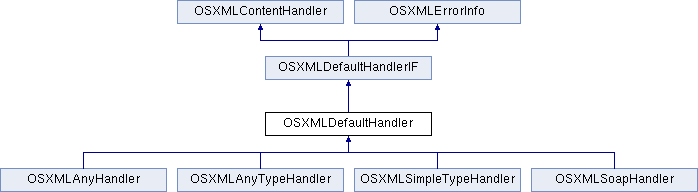

Inheritance diagram for OSXMLDefaultHandler:

Classes
struct	ErrorInfo

Public Member Functions
	OSXMLDefaultHandler (OSRTContext pContext, const OSUTF8CHAR elemName=0, OSINT32 level=0)

virtual EXTXMLMETHOD int	startElement (const OSUTF8CHAR const uri, const OSUTF8CHAR const localname, const OSUTF8CHAR const qname, const OSUTF8CHAR const *attrs)
	Receive notification of the beginning of an element. More...

virtual EXTXMLMETHOD int	characters (const OSUTF8CHAR *const chars, unsigned int length)
	Receive notification of character data. More...

virtual EXTXMLMETHOD int	endElement (const OSUTF8CHAR const uri, const OSUTF8CHAR const localname, const OSUTF8CHAR *const qname)
	Receive notification of the end of an element. More...

virtual EXTXMLMETHOD void	startDocument ()

virtual EXTXMLMETHOD void	endDocument ()

virtual EXTXMLMETHOD int	finalize ()

virtual EXTXMLMETHOD void	resetErrorInfo ()

virtual EXTXMLMETHOD void	setErrorInfo (int status, const char *file=0, int line=0)

virtual EXTXMLMETHOD int	getErrorInfo (int status, const char file, int line)

OSINT16	getState ()
	This method returns the current state of the decoding process. More...

virtual void	init (int level=0)

void	setElemName (const OSUTF8CHAR *elemName)

OSBOOL	isComplete ()

EXTXMLMETHOD void	traceStartElement (const char funcName, const OSUTF8CHAR localName)

EXTXMLMETHOD void	traceEndElement (const char funcName, const OSUTF8CHAR localName)

The virtual document handler interface

Protected Attributes
OSRTCtxtPtr	mpContext

const OSUTF8CHAR *	mpElemName

OSINT32	mLevel

OSINT16	mStartLevel

OSINT16	mReqElemCnt

OSINT16	mCurrElemIdx

OSINT16	mState

struct EXTXMLCLASS OSXMLDefaultHandler::ErrorInfo	errorInfo

Detailed Description

This class is derived from the SAX class DefaultHandler base class.

It contains variables and methods specific to decoding XML messages. It is used to intercept standard SAX parser events, such as startElement, characters, endElement. This class is used as a base class for XBinder generated global element control classes (<elem>_CC).

Definition at line 58 of file rtSaxCppParser.h.

Member Function Documentation

◆ characters()

virtual EXTXMLMETHOD int OSXMLDefaultHandler::characters	(	const OSUTF8CHAR *const	chars,
		unsigned int	length
	)

virtual

Receive notification of character data.

The Parser will call this method to report each chunk of character data. SAX parsers may return all contiguous character data in a single chunk, or they may split it into several chunks; however, all of the characters in any single event must come from the same external entity, so that the Locator provides useful information.

Parameters

chars	The characters from the XML document.
length	The length of chars.

Implements OSXMLContentHandler.

Reimplemented in OSXMLSoapHandler, and OSXMLSimpleTypeHandler.

◆ endElement()

virtual EXTXMLMETHOD int OSXMLDefaultHandler::endElement	(	const OSUTF8CHAR *const	uri,
		const OSUTF8CHAR *const	localname,
		const OSUTF8CHAR *const	qname
	)

virtual

Receive notification of the end of an element.

The SAX parser will invoke this method at the end of every element in the XML document; there will be a corresponding startElement() event for every endElement() event (even when the element is empty).

Parameters

uri	The URI of the asscioated namespace for this element
localname	The local part of the element name
qname	The QName of this element

Implements OSXMLContentHandler.

Reimplemented in OSXMLAnyHandler, OSXMLSoapHandler, OSXMLAnyTypeHandler, and OSXMLSimpleTypeHandler.

◆ getState()

OSINT16 OSXMLDefaultHandler::getState ( )

inline

This method returns the current state of the decoding process.

Returns: The state of the decoding process as type OSXMLState. Can be XMLINIT, XMLSTART, XMLDATA, or XMLEND.

Definition at line 124 of file rtSaxCppParser.h.

◆ startElement()

virtual EXTXMLMETHOD int OSXMLDefaultHandler::startElement	(	const OSUTF8CHAR *const	uri,
		const OSUTF8CHAR *const	localname,
		const OSUTF8CHAR *const	qname,
		const OSUTF8CHAR const	attrs
	)

virtual

Receive notification of the beginning of an element.

The Parser will invoke this method at the beginning of every element in the XML document; there will be a corresponding endElement() event for every startElement() event (even when the element is empty). All of the element's content will be reported, in order, before the corresponding endElement() event.

Parameters

uri	The URI of the asscioated namespace for this element
localname	The local part of the element name
qname	The QName of this element
attrs	The attributes name/value pairs attached to the element, if any.

See also: endElement

Implements OSXMLContentHandler.

Reimplemented in OSXMLAnyHandler, OSXMLSoapHandler, OSXMLAnyTypeHandler, and OSXMLSimpleTypeHandler.

The documentation for this class was generated from the following file:

rtSaxCppParser.h
